mockingbird

Mockingbird

A visual wireframing tool for rapid prototyping and user journey mapping. Built with Next.js and shadcn/ui, Mockingbird helps designers and developers create layouts and generate AI-ready prompts for code generation.

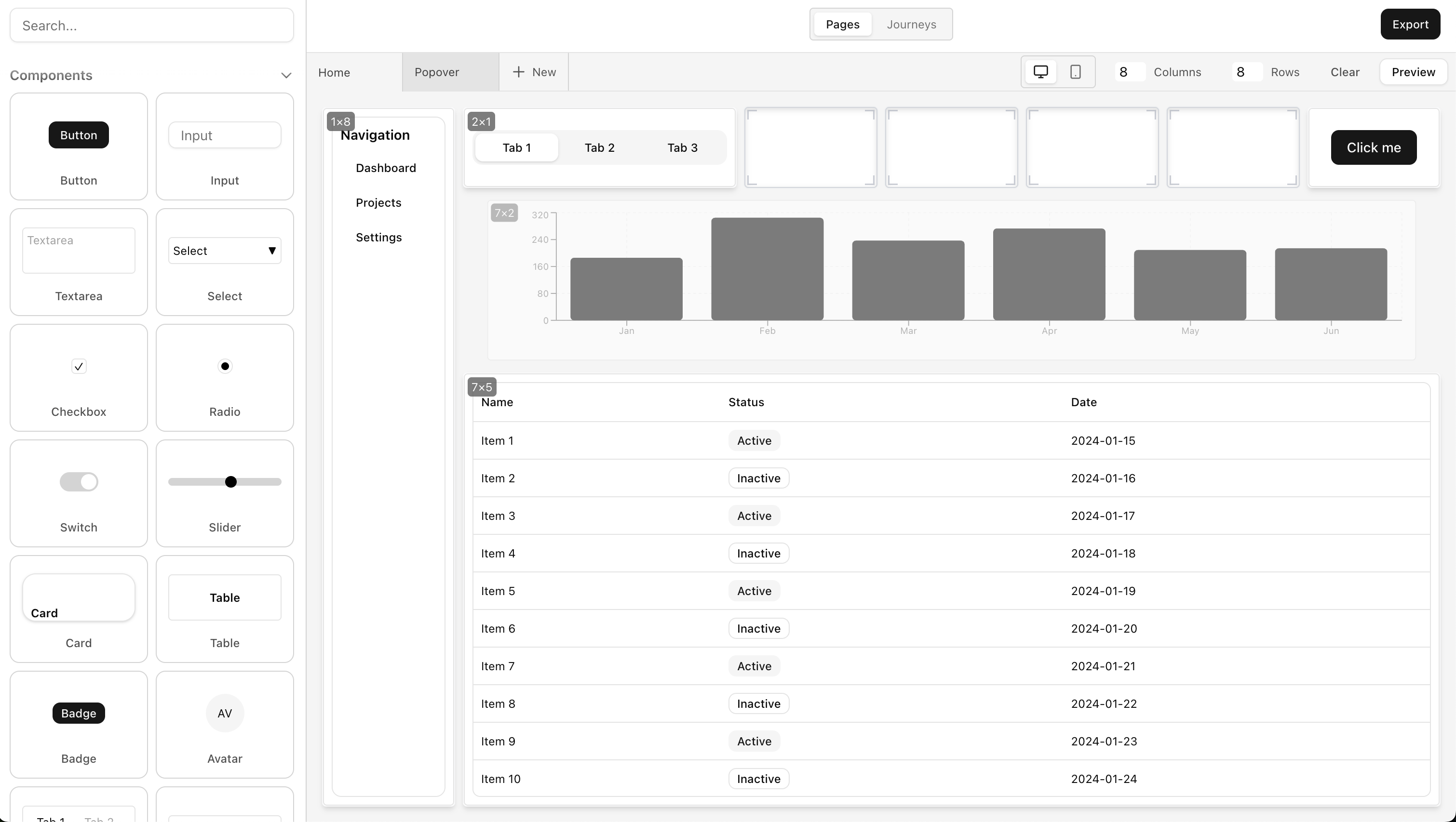

Wireframe editor with drag-and-drop components

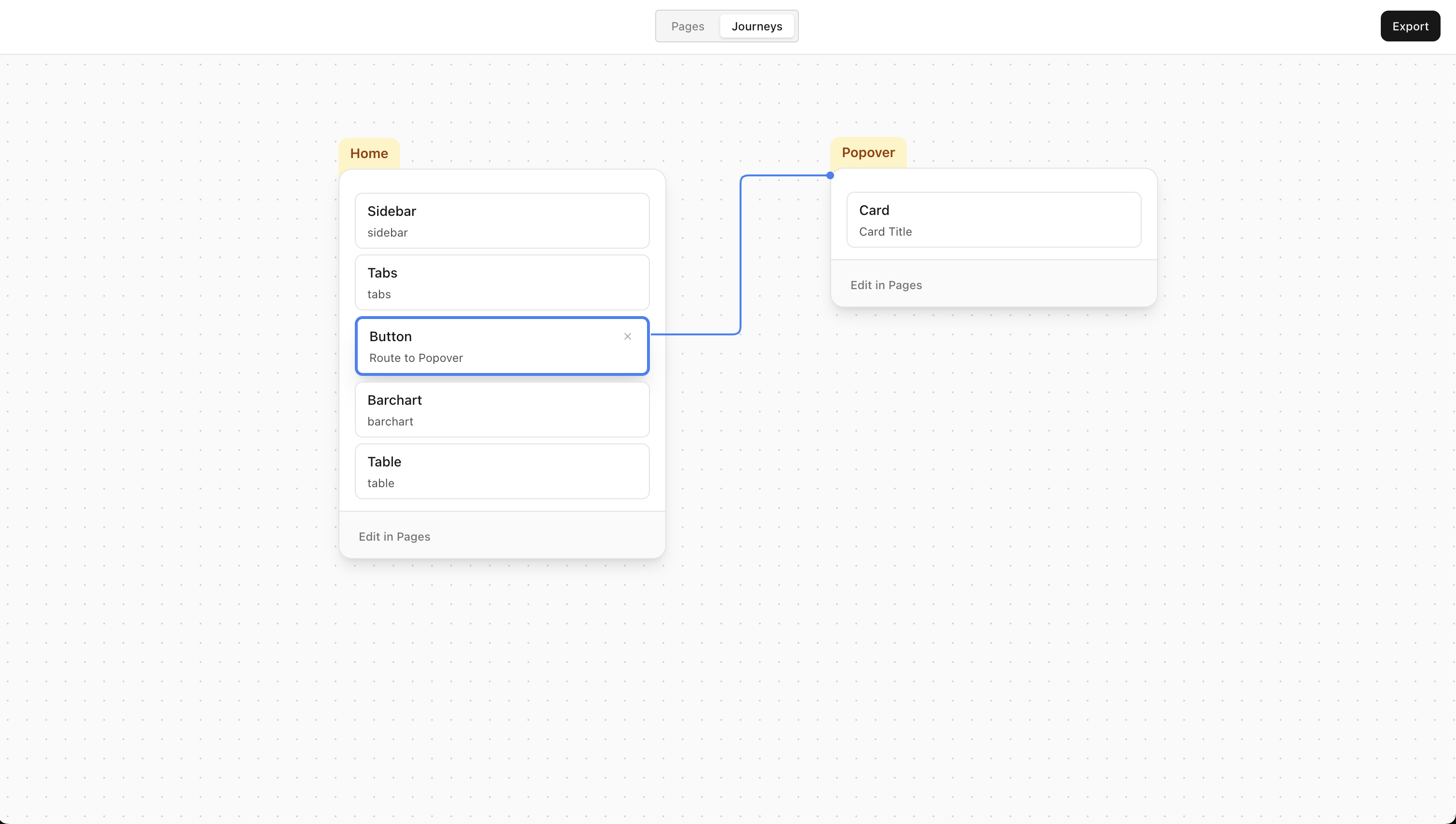

User journey mapping with visual flow connections

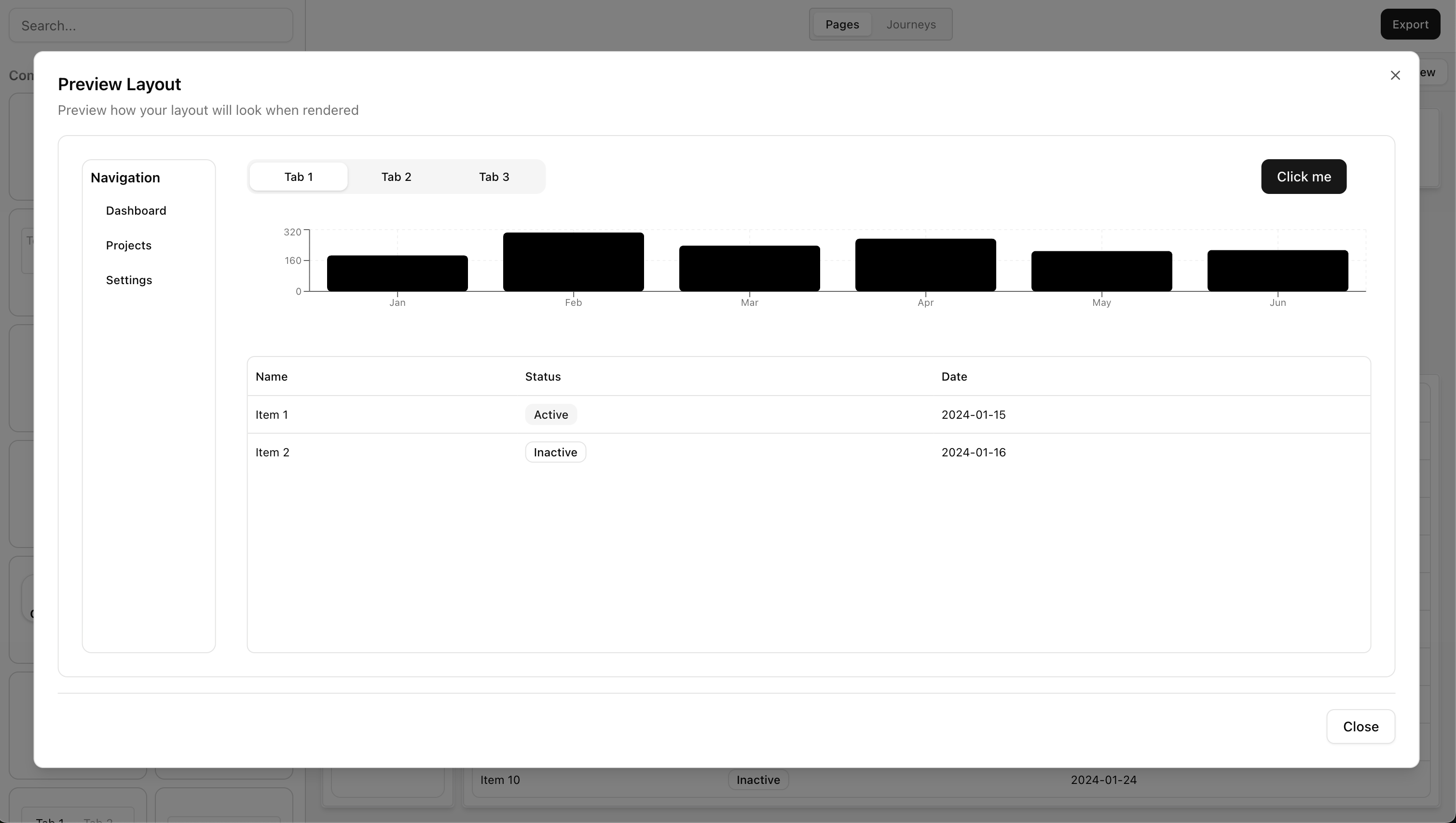

Preview your layout before exporting

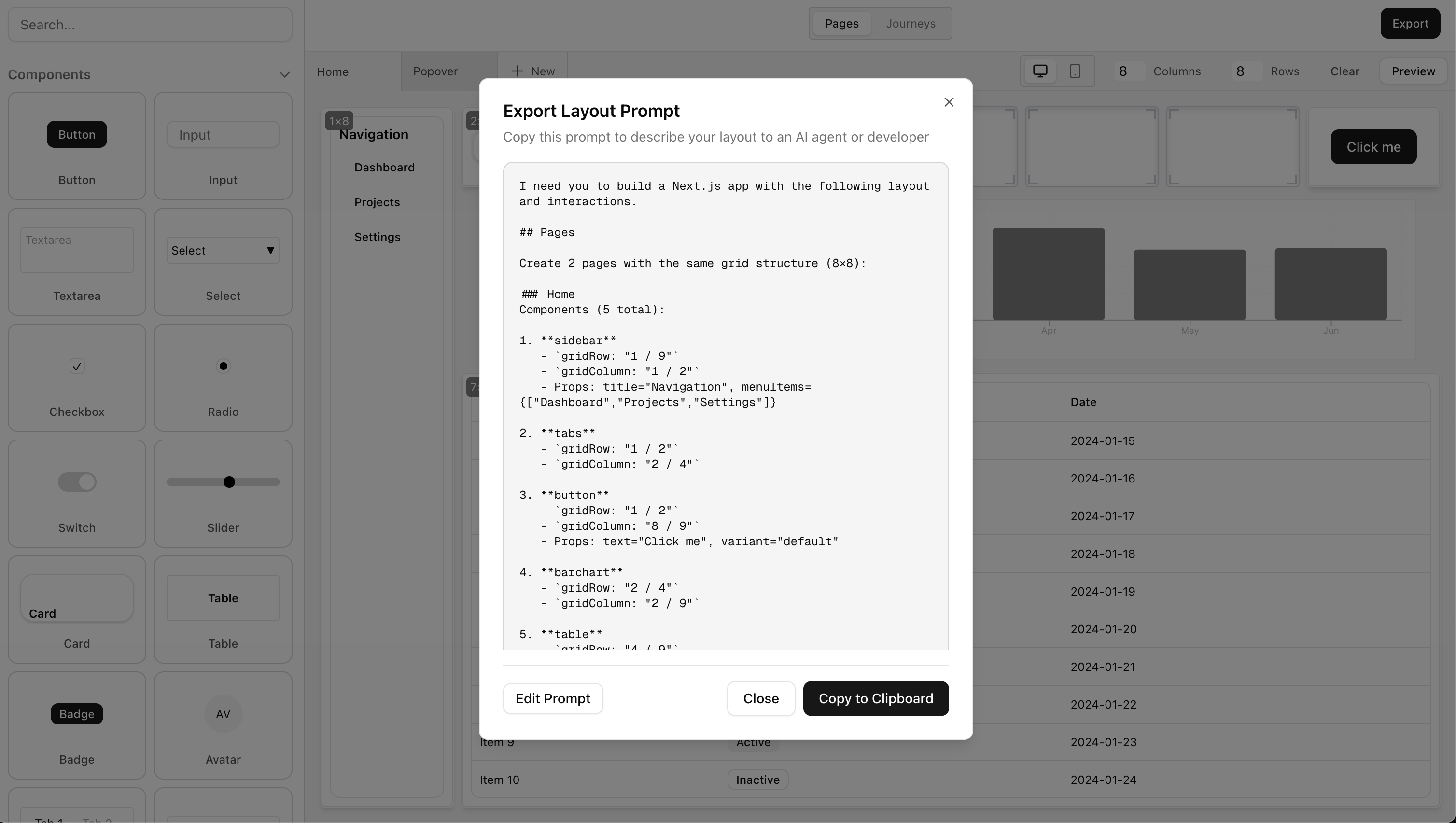

Generate AI-ready prompts from your wireframes

Features

Visual Wireframing

• Drag-and-drop component placement on a customizable grid
• Pre-built shadcn/ui component library
• Desktop and mobile preview modes
• Real-time property editing

Journey Mapping

• Connect components to pages to visualize user flows
• Multi-page project support
• Interactive connection management

AI-Powered Export

• Generate detailed prompts for AI code generation
• CSS Grid layout with explicit positioning
• One-click copy for sharing with AI assistants

Persistence

• Automatic local storage saves
• Session recovery
• Multi-page project management

Getting Started

Prerequisites

• Node.js 18+
• npm, yarn, pnpm, or bun

Installation

1. Clone the repository:

   git clone https://github.com/yourusername/mockingbird.git
   cd mockingbird


2. Install dependencies:

   npm install
   # or
   yarn install
   # or
   pnpm install


3. Run the development server:

   npm run dev
   # or
   yarn dev
   # or
   pnpm dev


4. Open http://localhost:3000 in your browser

Usage

Creating a Wireframe

1. Drag components from the sidebar onto the grid
2. Resize and position components using resize handles
3. Click a component to edit its properties
4. Adjust grid dimensions using row/column controls

Mapping User Journeys

1. Switch to the “Journeys” tab
2. Click a component, then click a destination page to create a connection
3. Click “Edit in Pages” to return to the wireframe view

Exporting Your Design

1. Click the Export button
2. Copy the generated prompt
3. Paste into your AI coding assistant (Cursor, Claude, ChatGPT, etc.)

Tech Stack

• Next.js 15
• React 19
• TypeScript
• Tailwind CSS
• shadcn/ui
• Recharts

Project Structure

mockingbird/
├── src/
│   ├── app/              # Next.js app router
│   ├── components/       # React components
│   │   ├── ui/          # shadcn/ui components
│   │   ├── WireframeGrid.tsx
│   │   ├── ComponentSidebar.tsx
│   │   ├── JourneyCanvas.tsx
│   │   └── ExportModal.tsx
│   ├── lib/             # Utilities
│   └── hooks/           # Custom React hooks
└── public/              # Static assets

License

This project is open source and available under the MIT License.
